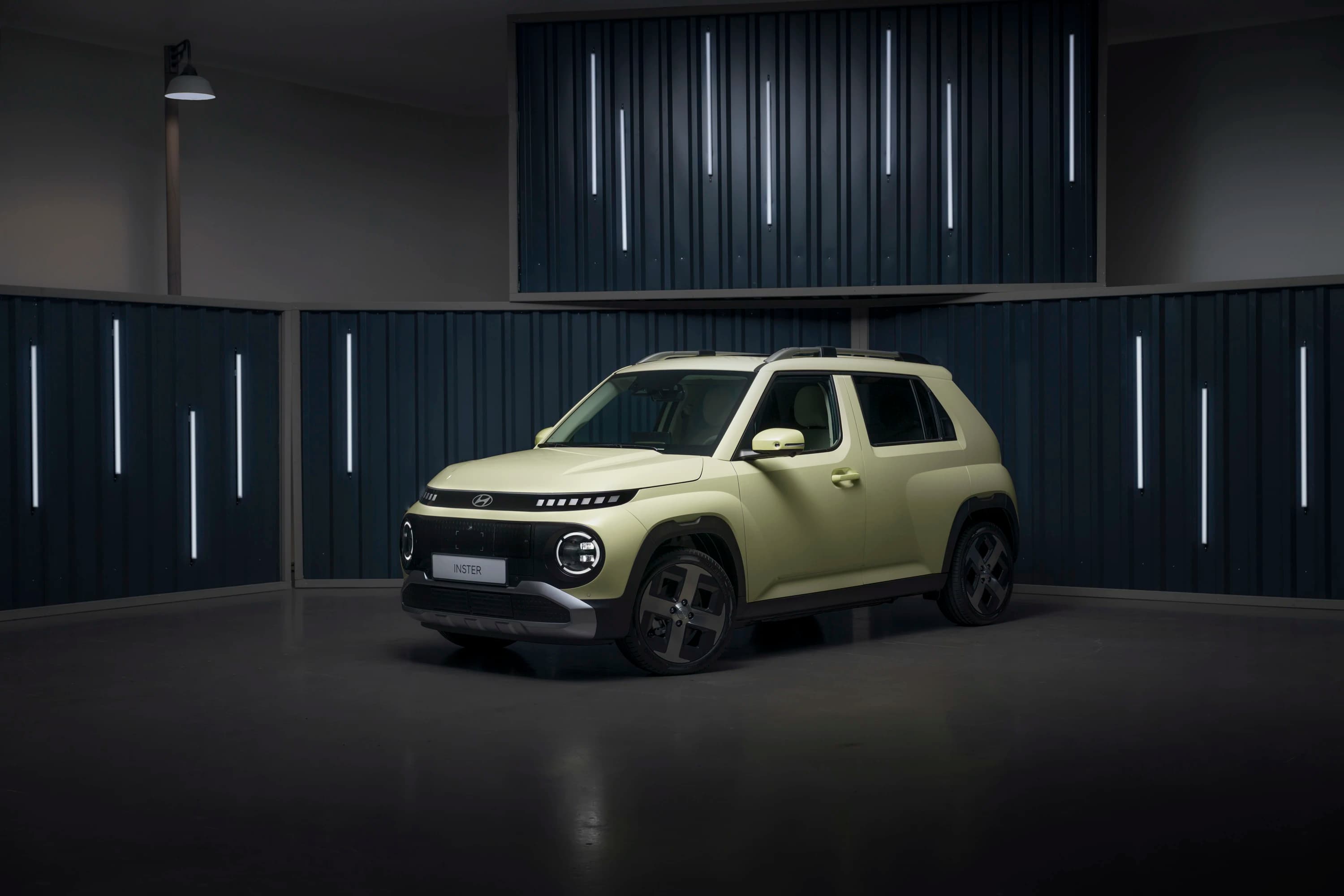

Hyundai INSTER Standard Range electric vehicle exterior

Hyundai INSTER Standard Range - Electric Vehicle Specs

Hatchback

Power

71 kW

(96 HP)

0-100 km/h

11.7 s

Top Speed

140 km/h

Battery Options

Standard Battery (41 kWh / 39 kWh)

Charging Curve & Charging Speed Analysis

Understanding Charging Performance

Charging performance isn't just about peak power—it's about sustained power across the entire charging curve. A vehicle that maintains 150kW from 10-80% SOC will charge faster than one that peaks at 250kW but quickly drops to 100kW after 20% SOC. The shape of the curve matters more than the highest peak power.

The key metric is C-rate, which accounts for both charging power and battery capacity. A C-rate of 2.0 means the battery can theoretically charge from 0-100% in 30 minutes, while 1.0 C-rate equals 60 minutes. This makes it easy to compare vehicles regardless of battery size.

Charging Curve Shape

Flat, sustained power across a wide SOC range beats high peaks that quickly taper off. Look for vehicles that maintain high power from 10-80% SOC.

C‑Rate & Timing

C-rate normalizes charging speed across different battery sizes. Higher C-rates mean shorter charging times and more flexible road trip planning.

Battery Options

Gross Capacity: 41 kWh
Net Capacity: 39 kWh
Buffer: 4%
The Hyundai INSTER Standard Range reaches peak charging power of 85 kW between 10–80% SOC.
It takes 25 min to charge from 10–80% SOC and adds 147 km of real-world highway driving range, representing a 1.7 C‑Rate. This performance is better than 88% in its class.

Average Charging Power

45 kW

Avg C‑rate: 1.2

Maximum Charging Power

85 kW

At 10 → 61% SOC

Minimum Charging Power

8 kW

0–100% Charging Time

55 min

Charging Curve

State of Charge over Time

SOC Range Charging Time Avg. Power Avg. C-Rate Energy Added
0% → 100% 55 min 45.4 kW 1.16 C 41.9 kWh
0% → 90% 40 min 56.5 kW 1.45 C 37.7 kWh
0% → 80% 29 min 68.0 kW 1.75 C 33.6 kWh
5% → 100% 53 min 44.8 kW 1.15 C 39.8 kWh
5% → 90% 37 min 56.3 kW 1.44 C 35.6 kWh
5% → 80% 27 min 68.7 kW 1.76 C 31.5 kWh
10% → 100% 51 min 43.8 kW 1.12 C 37.8 kWh
10% → 90% 36 min 55.4 kW 1.42 C 33.6 kWh
10% → 80% 25 min 68.2 kW 1.75 C 29.4 kWh
